?Are we looking for a reliable, quiet, and serviceable air compressor that gives us clean, dry air right out of the box?

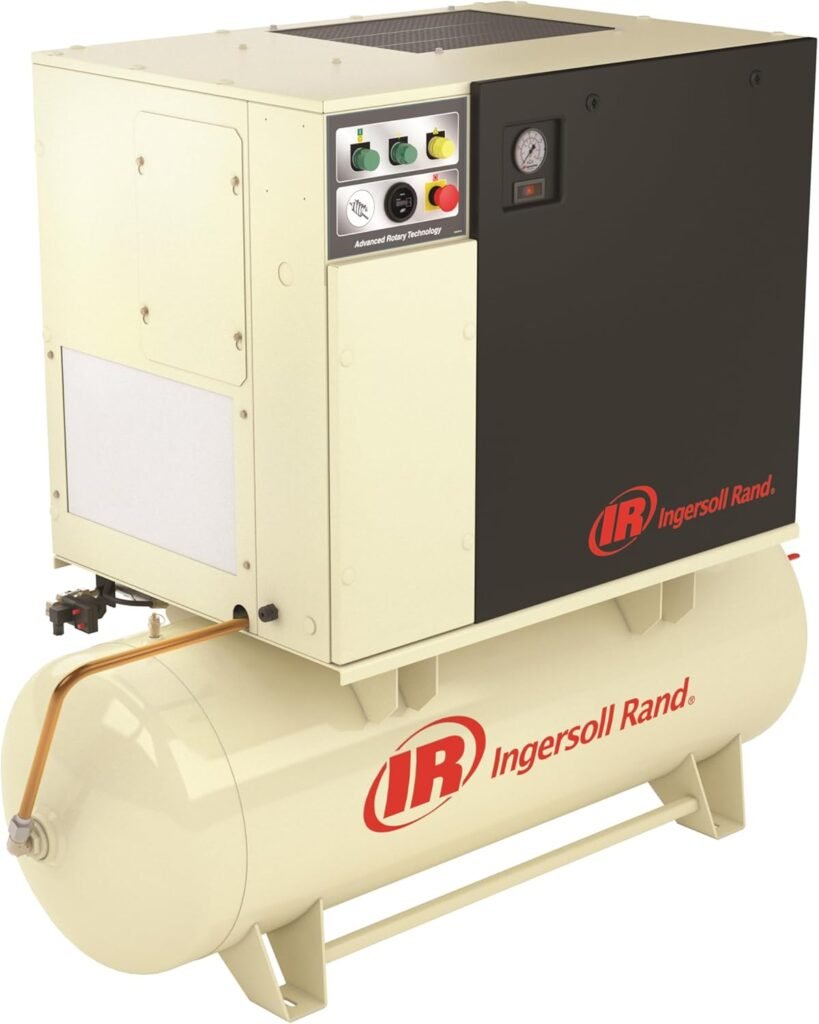

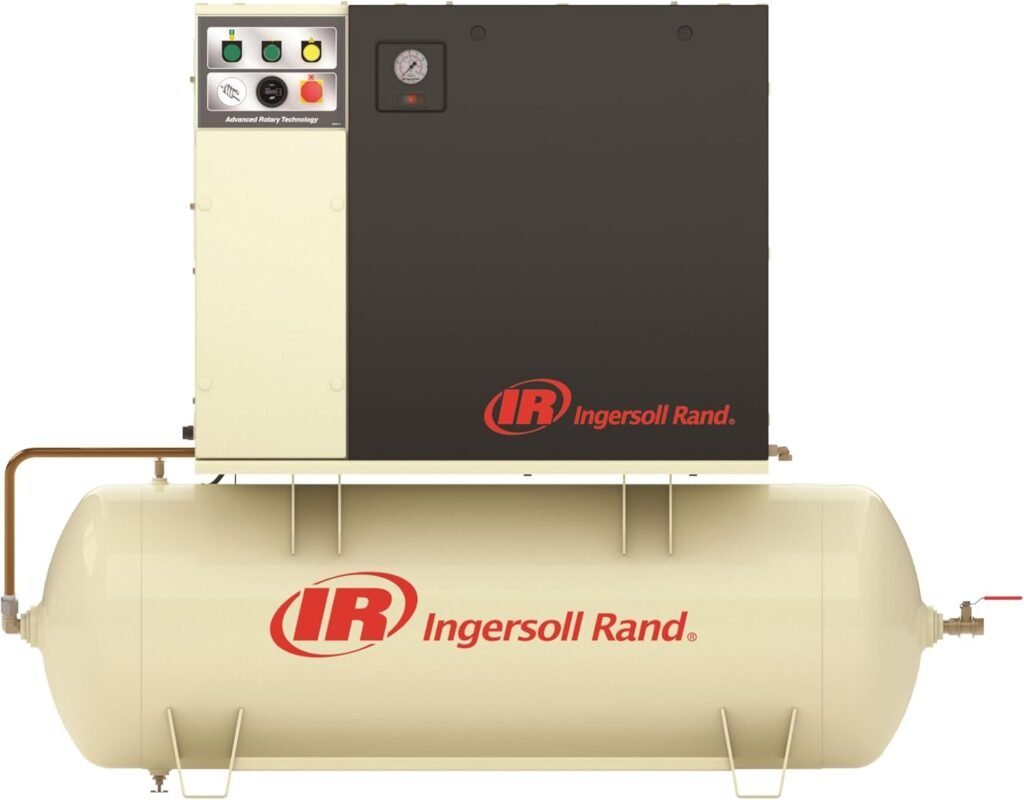

Product Overview: Ingersoll Rand UP6-7.5TAS-125 80 Gallon 230-1-60 Air Compressor 18004226
We want to understand what this unit brings to our shop or facility, so we’ll summarize the core offering. The Ingersoll Rand UP6-7.5TAS-125 is an 80-gallon tank air compressor delivering 28 CFM at 125 PSI, using a 230V single-phase motor, and it’s packaged with the TAS (Total Air System) which integrates a refrigerated dryer and filtration for clean, dry air in one cost-effective solution.
We appreciate that it includes features meant to reduce installation and operational friction. Whisper-quiet operation allows more flexible placement, the refrigerated dryer is built-in with integrated controls, and NEMA-1 electrical protection is standard. The unit claims 69 dB at typical operating conditions and a MAX PSI of 125, which aligns with many shop demands.
Key Features and What They Mean for Us
We’ll walk through the notable features and explain why each matters for our usage. Knowing how a feature translates into day-to-day benefits helps us decide if this compressor fits our needs.
TAS (Total Air System) — Clean, Dry Air in One Package
The TAS integrates a refrigerated dryer and high-efficiency filters directly into the compressor assembly, which simplifies procurement and installation logistics. This means we don’t need to source separate drying or filtration equipment and can reduce piping and footprint concerns while still getting quality air suitable for many pneumatic tools and painting tasks.
We like the cost-effectiveness implied by a single-package solution. For shops that need reliable instrument-quality air for production or finishing, a built-in dryer and dual filters reduce the risk of moisture and particulates causing downtime or producing defects.
Refrigerated Dryer with Integrated Controls
The refrigerated dryer cools compressed air so moisture condenses out before it reaches our tools or process lines. With integrated controls, the dryer operates in sync with the compressor to optimize performance and reduce operator guesswork.
This makes the system easier to manage and lowers the chance of having to manually adjust dryer settings or add separate controller hardware. For busy maintenance teams, fewer standalone components mean fewer things to monitor and maintain.
Whisper Quiet Operation — Installation Flexibility
At approximately 69 dB, this unit is quieter than many industrial compressors, allowing us to place the machine closer to points of use. That reduces the length of compressed air piping we need and can lower pressure drop and energy losses across long runs.
Being able to locate the compressor nearer to our tools also improves safety and convenience, and it can reduce the need for extensive acoustic treatments or separate compressor rooms in small shops and studios.
Simple Diagnostics, Auto Start/Stop, and Serviceability
We value straightforward operation, especially when several people with varying technical backgrounds may use or monitor the machine. The simple diagnostics and auto start/stop features reduce the need for constant supervision and help conserve energy during idle periods.
A spacious design that maximizes serviceability means routine tasks like oil checks, filter changes, and dryer maintenance are faster and easier. For operations that want minimal downtime, the UP6 Series’ service access design is a tangible advantage.
Electrical Protection and Safety
NEMA-1 electrical protection is provided, which suits typical indoor installations where the unit is shielded from moisture and dust intrusion. The single-phase 230V motor is common for many shops and avoids three-phase motor complexities in smaller facilities.
We should still confirm local electrical code compatibility and whether any additional isolation, disconnects, or protective devices are required for our particular installation.
Performance Specifications and Technical Breakdown
We’ll present the most relevant technical specifications in a table to make comparisons easy. After that, we’ll discuss what those numbers mean for practical use.
| Specification | Detail |
|---|---|
| Model | Ingersoll Rand UP6-7.5TAS-125 (18004226) |
| Tank Capacity | 80 gallons |
| Motor Voltage | 230 V, Single Phase, 60 Hz |
| Rated Output | 28 CFM @ 125 PSI |
| Maximum Pressure | 125 PSI |
| Noise Level | 69 dB (approx.) |
| Filtration & Dryer | Refrigerated dryer + dual high-efficiency filters (TAS) |
| Electrical Protection | NEMA-1 |
| ASIN / Part | ASIN B081QN8G48 / 23352131 |
| Maintenance Kit | Available separately (Ingersoll Rand maintenance kit) |
We like that the 80-gallon tank gives us a reasonable buffer to smooth out compressor cycling and supply transient demands. The 28 CFM rating at 125 PSI covers most common pneumatic tools and smaller production blowers, but larger or continuous-demand processes may need higher CFM.
What 28 CFM @ 125 PSI Actually Means for Our Work
Numbers are useful, but we need to know how they map to our tool set and production. We’ll explain typical tool air consumption and how this compressor will meet those needs.
Pneumatic nail guns, impact wrenches, and blow-off nozzles tend to be low to moderate consumers, typically in the 2–10 CFM range depending on duty cycle and tool size. Light painting booths, moderate sanders, and some CNC machine auxiliary functions often fit well under an available 28 CFM if usage is staggered.
If we plan to run multiple high-demand tools simultaneously, especially high-horsepower grinders, sanders, or multi-spindle machining centers, this unit may become a limiting factor. For continuous high-flow applications like multiple paint booths or large spray operations, we would look at larger compressors or multiple units staged together.
Installation and Space Considerations
We’ll cover what to think about when placing and installing this compressor in our facility. Proper planning avoids headaches and additional expenses after purchase.
Because the UP6 Series is whisper-quiet and packaged with dryer and filters, we can often place it closer to the work area than louder packaged units. That saves on long runs of header piping and reduces pressure drop. We still need to allow clearance for service access—around the front and sides—so technicians can perform routine maintenance without moving the unit.
Electrical needs are standard single-phase 230V, but we’ll need to confirm circuit sizing and ensure we have appropriate disconnects and safety devices. Additionally, we should provide a flat, vibration-free floor and ensure the location is free from excessive dust, moisture, or corrosive chemicals, since it’s NEMA-1 rated rather than a more rugged enclosure.
Piping and Pressure Drop Considerations
We must size piping to minimize pressure drop, especially when placing the compressor near high-demand areas. Shorter, larger-diameter piping reduces losses, so we’ll prefer 3/4″ or 1″ runs for long headers rather than reducing to smaller sizes.
Incorporating a properly sized receiver and considering an additional air storage tank can smooth demand spikes and reduce needless cycling. The built-in 80-gallon tank helps, but adding remote storage might be useful for specific high-demand scenarios.
Noise, Environment, and Placement Benefits
We like to keep the work environment comfortable and compliant with local noise regulations, so we’ll address how this unit helps. The reported 69 dB sound level is an advantage for indoor placement.
At 69 dB, the unit operates at a level comparable to a typical air conditioner or background office noise, which means we can reduce acoustic treatment costs and place the compressor in multi-use spaces. That reduces the investment needed to create remote compressor rooms and lowers the complexity of running long pipes.
We should still use basic acoustic isolation and vibration dampers, as even moderate noise can accumulate in enclosed spaces or areas with reflective surfaces. Vibration isolation also protects piping and reduces structure-borne noise.
Maintenance, Serviceability, and Long-Term Ownership
We’ll explain what routine maintenance looks like and how easy it is to keep the system running. Reliable serviceability helps us avoid unexpected downtime and manage lifecycle costs.
Daily or weekly checks typically include monitoring oil level (if it is an oil-lubricated screw compressor), inspecting filters, and checking system pressures and condensate drains. The UP6 Series’ spacious layout eases filter changes, dryer servicing, and other common tasks, reducing the labor time and effort required for these procedures.
An Ingersoll Rand maintenance kit is available separately, and we recommend stocking it or establishing a service contract to ensure we have genuine parts on hand. Using OEM parts and following recommended service intervals generally extends the lifespan of the compressor and preserves warranties.
Diagnostics and Controls
The simple diagnostics and auto start/stop functionality are beneficial for operators and maintenance staff alike. We can monitor basic statuses, and the system will automatically manage pressure setpoints to reduce unnecessary cycling.
For larger facilities, integrating this compressor with building automation or remote monitoring systems can further enhance oversight. If we want advanced telemetry, we should confirm what control and communication options are available, and whether additional modules are needed.
Energy Efficiency and Operating Costs
We’ll consider power consumption, expected duty cycle, and how features like auto start/stop affect operational spending. Energy efficiency is often a major contributor to total cost of ownership.
Auto start/stop reduces wasted runtime when demand is low, and the integrated dryer reduces energy losses associated with separate drying systems. Because the compressor matches output to demand more effectively, we can avoid extended idle times that consume power.
We should compute actual cost using local electricity rates, expected run hours, and the compressor’s motor full-load amp draw. For facilities with variable demand, consider whether adding a variable speed drive (VSD) or staging multiple compressors is a better long-term energy strategy, though VSDs are typically not part of a standard packaged unit.
Filtration, Dryer Performance, and Air Quality
We care about output air quality because moisture and particulates cause tool wear, product defects, and process interruptions. The UP6’s TAS includes dual high-efficiency filters and a refrigerated dryer to address these concerns.
The refrigerated dryer will remove the bulk of moisture that condenses out of compressed air, while the filters trap particulates and oil aerosols. This configuration is suitable for many industrial and production environments, including painting, light assembly, and pneumatic tool operations. For critical instrument-grade or medical applications, we should confirm required dew point and filtration level specifications, and add further polishing if necessary.
Typical Use Cases and Application Fit
We’ll list typical scenarios where this compressor is well matched and also call out situations where it might fall short. That helps set expectations for our purchasing decision.
This unit fits well in auto shops, small to mid-sized manufacturing workshops, cabinet shops, small paint booths, and maintenance departments. Its combined dryer and filter package makes it especially attractive where clean, dry air is important and space or budget constraints make separate components undesirable.
It may be undersized for large-scale continuous painting lines, multiple simultaneous production cells with high-air-demand spindles, or industrial processes requiring very low dew points or extremely high airflow. In those cases, we’d consider larger or multiple units, or systems with higher CFM and specialized drying.
Pros and Cons — Our Balanced Perspective
We’ll summarize the main strengths and weaknesses so we can weigh the tradeoffs quickly when making decisions.
Pros:
- Integrated TAS provides dryer and filters, saving space and installation time.
- Whisper-quiet operation (~69 dB) allows flexible placement.
- 80-gallon tank provides useful surge capacity and smoother cycling.
- Easy serviceability with roomy layout for maintenance tasks.
- Simple diagnostics and auto start/stop lower operator overhead.
Cons:
- 28 CFM may not be enough for heavy industrial, continuous high-flow operations.
- NEMA-1 enclosure limits outdoor or harsh-environment placement without additional protection.
- Maintenance kit sold separately; additional cost and planning needed.
- Single-phase 230V may require electrical work in some facilities to accommodate the unit.
We think the balance of features and convenience tips the scales toward favorable outcomes for many shops, but specifics of our application will ultimately determine suitability.
Comparison with Similar Units and Market Alternatives
We’ll highlight how this model stacks up against alternatives in its class, focusing on features and typical usage scenarios. Comparing helps us decide whether the UP6 is the best fit or whether another option offers more targeted value.
Compared to basic packaged compressors without a dryer, the UP6’s TAS adds immediate value by eliminating the need for separate drying and filtration purchases. Against higher-CFM industrial units, it falls short in flow but excels in compactness and noise suppression. For shops needing quiet operation and integrated air treatment, the UP6 often represents a better overall value than a louder, lower-feature compressor.
If our demands are very variable, we might also consider modular compressor systems or units with variable speed drives for improved efficiency. Those alternatives typically cost more upfront but can reduce electrical costs over time in highly variable duty cycles.
Purchasing Considerations and Accessories
We’ll outline what to check and what extras we might want to add to optimize performance and reliability. Planning accessory purchases up front saves downtime later.
Essential considerations:
- Verify local electrical supply compatibility and circuit capacity.
- Plan for adequate ventilation and condensation drainage from the refrigerated dryer.
- Confirm space and service clearances around the unit.
Recommended accessories:
- Ingersoll Rand maintenance kit (sold separately) for scheduled servicing.
- Vibration isolation pads to reduce structure-borne noise and stress on piping.
- Additional remote air receiver if we expect frequent or large demand spikes.
- Filtration upgrade or aftercooler if we need lower dew points or finer particulates removal.
We should also check warranty terms and consider an extended service plan or preventive maintenance contract, particularly if compressor uptime is critical to operations.
Installation Checklist and Quick Start Tips
We’ll provide a practical checklist to make the setup smoother and reduce initial hiccups during commissioning. Following a clear plan helps us bring the unit online efficiently.
Installation checklist:
- Confirm electrical supply: single-phase 230V, appropriate breaker and disconnect.
- Level and secure the compressor on a stable floor; install vibration pads if needed.
- Provide clearance for service — check manufacturer recommendations for space around the unit.
- Connect condensate drain and ensure proper disposal or treatment.
- Verify dryer condensate line routing and that the drain point is correct and unobstructed.
- Check piping layout and use appropriately sized lines to minimize pressure drop.
- Run initial checks per manual: oil level, belts (if applicable), filters, and safety interlocks.
- Observe first startup and verify pressure settings, dryer operation, and leak-free piping.
Starting with a step-by-step commissioning plan saves time and avoids common early-life problems like moisture in lines or undersized electrical feeds.
Warranty, Support, and Parts Availability
We’ll cover what to expect from manufacturer support and how to plan for long-term parts and service needs. This helps minimize lifecycle risk.
Ingersoll Rand is a well-established brand with broad parts support and a network of service technicians, which gives us confidence in obtaining replacement filters, dryer components, and maintenance kits. The ASIN and part number are handy when ordering parts online: ASIN B081QN8G48 / 23352131 helps ensure we get the right components.
We recommend recording serial numbers and purchase documentation in a maintenance log and considering a factory-authorized service provider for major repairs. That preserves warranty coverage and helps ensure that the machine receives proper care.
Cost of Ownership and Return on Investment
We’ll discuss the factors that influence total cost of ownership and how the integrated features can improve ROI. Understanding both upfront and ongoing costs is key for a smart purchase.
Upfront costs include the compressor purchase price, shipping, installation, and any electrical or piping upgrades. Integrated dryer and filters reduce initial capital outlay compared to buying separate components, and quieter operation can reduce indirect costs like requiring less specialized space or noise mitigation.
Ongoing costs include electricity, routine maintenance (filters, oil, dryer upkeep), and parts replacement. If we maintain the unit per manufacturer recommendations and use genuine parts, we typically see longer life and fewer interruptions, which improves ROI. For many small-to-medium operations, the convenience and reduced installation costs of the TAS package accelerate payback.
Final Thoughts and Recommendation
We’ll conclude with a practical recommendation based on features, costs, and typical use cases. This helps us decide whether to proceed with purchase or consider alternatives.
We find the Ingersoll Rand UP6-7.5TAS-125 80 Gallon 230-1-60 Air Compressor 18004226 well suited for small to medium workshops, auto shops, and production environments that need reliable, quiet compressed air with built-in drying and filtration. Its ease of service, compact footprint, and quality of output air make it a strong candidate where space and air quality matter.
If our needs are for higher continuous CFM or usage across a large plant with simultaneous heavy-demand tools, we should evaluate larger-capacity compressors or staged systems. For most smaller operations seeking a turnkey, lower-noise solution with integrated air treatment, this model presents a compelling option.
Frequently Asked Questions (FAQs)
We’ll answer common questions we would ask ourselves if we were considering this compressor. These practical answers help clarify lingering concerns.
Q: Does the integrated dryer require special drainage? A: Yes, the refrigerated dryer will produce condensate and requires a proper drain connection. We should ensure the condensate line is routed and sized per the manual and, if necessary, consider a condensate management system that meets local environmental rules.
Q: Is 28 CFM enough for multiple tools? A: That depends on simultaneous use and tool sizes. For a few tools used intermittently or sequentially, 28 CFM and the 80-gallon receiver are usually sufficient. For multiple heavy-duty tools running continuously at the same time, we might require a larger system.
Q: Can we install this outdoors? A: The unit is NEMA-1 rated, which is intended for indoor environments protected from weather and corrosive atmospheres. If outdoor installation is necessary, we should provide an appropriate enclosure and environmental protection.
Q: How noisy is the compressor in a real shop setting? A: At about 69 dB, the compressor is quieter than many industrial units and often tolerable within a shared workspace. Ambient conditions and reflections can change perceived noise levels, so planning for acoustic isolation and vibration pads can help.
Q: Is the Ingersoll Rand maintenance kit necessary? A: While not strictly necessary, having the maintenance kit on hand or on order is highly recommended. It contains recommended consumables and helps ensure we perform scheduled maintenance with OEM parts, which reduces downtime and potential for premature failures.
We hope this thorough review gives us the clarity we need to assess whether the Ingersoll Rand UP6-7.5TAS-125 is the right compressor for our operation. If we want, we can run load and tool usage estimates together to determine the exact fit for our shop or plan a comparison with specific alternative models.
