Have we ever wished refrigerant recovery could be faster, safer, and less of a hassle on the job site or in the workshop?
What Is the 3/4 HP Single Cylinder Refrigerant Recovery Machine?
This 3/4 HP Single Cylinder Refrigerant Recovery Machine, 110V 60Hz Portable Oil-Free Freon Recycling Unit, is designed to help us recover both liquid and vapor refrigerants efficiently. It is aimed at technicians and serious DIY users who work on air conditioning, refrigeration, and heat pump systems.
We are looking at a compact, portable unit that plugs into a standard 110–120V outlet and uses an oil-free compressor, so we do not have to worry about oil maintenance in the machine itself. It is built to work with a broad range of refrigerants and to provide reliable performance under frequent use.
Key Features at a Glance
Before we move deeper into our impressions, we find it helpful to summarize the main features in a simple table. This gives us a quick overview of what this machine actually offers and how it stands out.
| Feature | Specification / Description |
|---|---|
| Motor Power | 3/4 HP |
| Compressor Type | Oil-free, single-cylinder |
| Power Supply | 110–120V, 60Hz |
| Recovery Type | Liquid and vapor refrigerant |
| Safety Features | Intake & discharge gauges, automatic high-pressure shutoff, overload protector |
| Pressure Shutoff Threshold | Automatically shuts off at internal pressure above 558 psi |
| Reset Function | Automatic reset when pressure drops; overload switch resets after ~5 minutes |
| Self-Bleed/Purge | Purge switch for clearing residual refrigerant in the system |
| Condenser & Cooling | Large condenser with cross-flow fan design for faster cooling and shorter cycle times |
| Portability | Compact design with ergonomic handle |
| Compatible Refrigerants | Category III, IV, V refrigerants (e.g., R12, R22, R134a, R404A, R410A, R507, and many more) |
| Typical Applications | Automotive A/C, household A/C, commercial refrigeration, heat pump units |
| Not Suitable For | Explosive, flammable, or corrosive refrigerants |
Design and Build Quality
The overall design feels very much focused on everyday, practical use. We can see that portability, durability, and clear feedback (through gauges) were central goals when this unit was developed.
We are working with a sturdy housing that can handle being moved between jobs and placed in tight spaces. The ergonomic handle makes lifting and carrying easier, and the compact footprint allows us to store it neatly in a service van, workshop, or storage shelf without needing much room.
Sturdy Construction
When we look at the structure, the machine is built around a single-cylinder, oil-free compressor and a powerful 3/4 HP motor. These are supported by strong internal components and a robust outer shell.
We appreciate that the manufacturer clearly aimed for a long service life. The sturdy body and quality components are exactly what we want when equipment travels with us to different job sites, faces temperature changes, and gets used regularly.
Compact and Portable
Despite the power inside, the whole unit remains quite compact. We can carry it with one hand using the ergonomic handle, which is important when we already have hoses, gauges, and tools to manage.
Portability matters a lot on rooftops, tight mechanical rooms, and packed garages. We like that this machine does not feel bulky or awkward when we shift it from one location to another, yet it still delivers a serious 3/4 HP recovery performance.
Performance and Efficiency
Where this machine really earns its keep is in its recovery performance. We want a unit that can recover refrigerants quickly and reliably, and this is precisely where the 3/4 HP oil-free compressor shows its strength.
We notice that it is clearly designed for both speed and consistency, helping us finish jobs faster while keeping recovery processes safe and controlled.
High-Efficiency Recovery Power
The 3/4 HP motor, paired with the single-cylinder oil-free compressor, gives us a strong recovery speed for both liquid and vapor refrigerants. In practical terms, this means less waiting time while refrigerant is pulled from the system into the recovery cylinder.
With the 110–120V 60Hz power requirement, the machine runs off standard outlets in most homes, shops, and commercial settings. This is convenient because we do not need special power arrangements; we can plug in and get to work.
Faster Cooling and Shorter Cycle Times
The large condenser and fan use an improved cross-flow design, which is specifically there to improve cooling performance. Better cooling means the machine can sustain higher recovery speeds without overheating, and the internal components enjoy more stable operating temperatures.
In practice, we find that these cooling enhancements lead to shorter cycle times and more efficient recovery sessions. We can move from job to job without excessive downtime letting the machine cool off.
Safety Features and Protections
When we deal with refrigerants and pressurized systems, safety is not negotiable. This unit includes several layers of protection designed to protect us, the machine, and the equipment we work on.
We appreciate that the machine does not rely on guesswork; instead, it gives us clear visual readings and automated safety responses.
Built-In Intake and Discharge Pressure Gauges

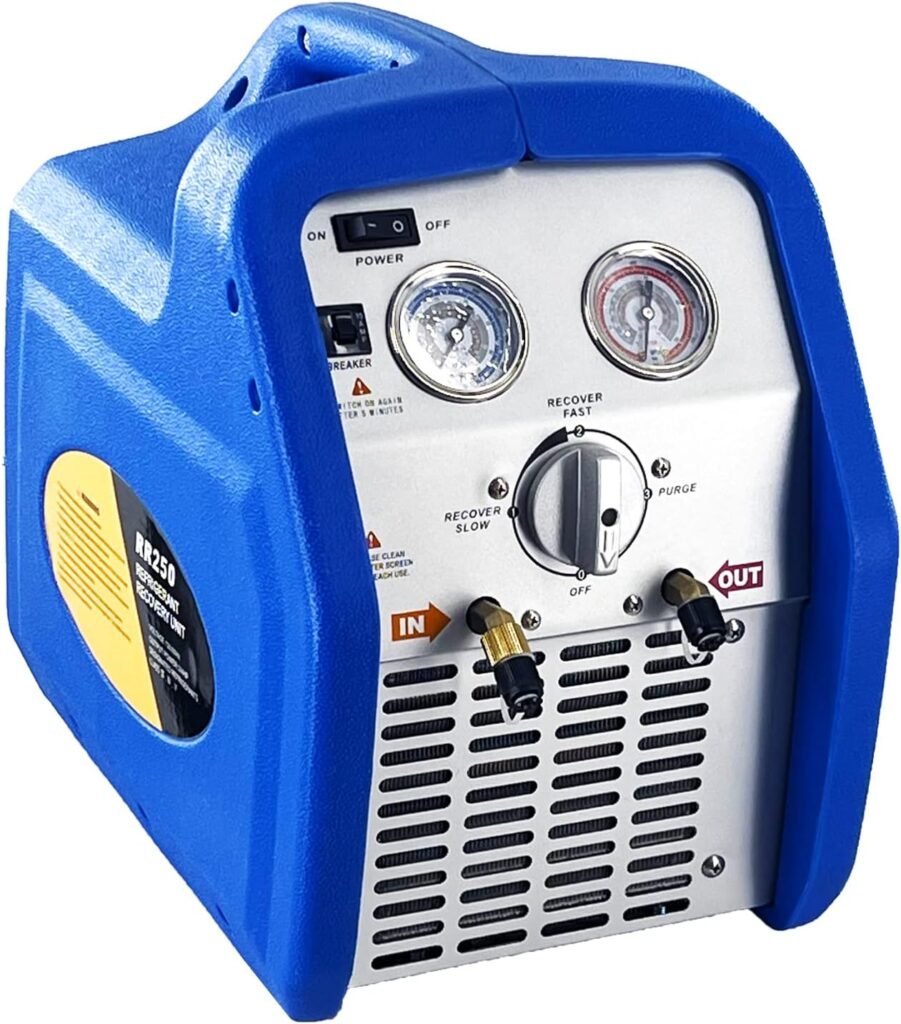

On the front panel, we have two pressure gauges:
- A blue intake pressure gauge
- A red discharge pressure gauge
Both gauges have clearly marked scales, allowing us to monitor what is happening inside the system at a glance. This visual feedback is crucial when we are adjusting valves, observing recovery speed, or verifying that we remain within safe operating ranges.
We like how these gauges help us quickly understand pressure conditions during different stages of recovery, whether pulling vapor or liquid.
Automatic High-Pressure Shutoff at 558 psi
One of the most important safety features is the automatic shutoff at an internal pressure of over 558 psi. Once that threshold is reached, the machine stops itself to prevent damage to the compressor, hoses, or other connected components.
This is reassuring because we are not always able to react instantly if pressure starts to climb. The machine’s automatic response adds a layer of protection. Once the pressure returns to a safer level, the device automatically resets and can resume operation.
Overload Protection for the Motor
In addition to pressure protection, the machine comes with an overload protector for the motor. If the system experiences an overload, the protector trips to shut down power and protect the motor from damage.
After about five minutes, the switch repositions once conditions are safe again, allowing us to resume work. This automatic reset is very handy during demanding sessions where the unit is running long and hard.
We find that this overload protection extends the life of the machine and reduces the risk of sudden, costly breakdowns in the field.
Self-Bleed and Purge Function
Residual refrigerants inside a recovery machine can cause issues over time. They can contaminate future recoveries, affect performance, and potentially harm the compressor or internal components. This model tackles that problem with a dedicated self-bleed function.
We appreciate that the designers recognized how necessary proper purging is, not just for efficiency but also for compliance and equipment longevity.
Purge Switch for Clearing Residual Refrigerant
The purge switch allows us to clean out the remaining refrigerants inside the machine at the end of a job or between different types of refrigerant. By using this self-bleed function, we avoid cross-contamination and reduce the risk of internal damage caused by trapped refrigerant.
We find this feature particularly helpful when we handle different refrigerant types on the same day. A proper purge lets us move confidently from one refrigerant to another without carrying over residual gases.
Filter Dryer for Moisture and Liquid Removal
The included filter dryer plays another key role. It is designed to remove moisture and liquid substances present in the air or refrigerant flow. Moisture in particular can cause corrosion, freezing issues, or damage to system components.
We like that the filter is replaceable, so we can maintain high performance and long life for the machine. By changing the filter at regular intervals, we keep the internal path cleaner and protect the compressor and valves from contamination.
Oil-Free Compressor Advantages
Using an oil-free compressor might sound like a small detail, but it has significant practical implications. It changes how we maintain the machine, how clean the refrigerant stays, and how quickly we can be ready for the next job.
We appreciate that the designers chose an oil-free design for convenience and cleaner operation.
Reduced Maintenance Needs
With an oil-free compressor, we do not have to worry about checking or changing oil inside the recovery machine itself. There is no need to top off or drain compressor oil, which simplifies our maintenance routine dramatically.
We find that this also reduces the chance of oil leaks or contamination, and cuts down on the supplies we have to carry around. Overall, the ownership experience becomes easier, especially for busy technicians who manage multiple service tools.
Cleaner and More Consistent Operation
Because the compressor does not rely on oil, there is less risk of oil mixing with recovered refrigerant. This is useful when refrigerant recovery has to stay as clean as possible, whether for reclaim, recycling, or proper disposal.
We like how the oil-free design supports consistent performance. We are not depending on oil quality or level to maintain pressure and cooling; instead, the unit delivers its rated performance each time we switch it on, as long as we maintain filters and handle it correctly.
Wide Refrigerant Compatibility
One of the most impressive aspects of this machine is how many refrigerant types it can handle. For technicians or advanced DIY users who work across different systems and generations of equipment, broad compatibility is a major advantage.
We are not locked into just one or two common refrigerants; instead, we can tackle a very wide range of jobs with a single recovery unit.
Supported Category III, IV, and V Refrigerants
The machine supports a large list of refrigerants, including many that are widely used in automotive, residential, and commercial systems. Some of the key refrigerants include:
- R12
- R134a
- R22
- R401A, R401B, R401C
- R402A, R402B
- R404A
- R406A
- R407A, R407B, R407C, R407D
- R408A
- R409A
- R411A
- R500
- R502
- R507
- R509
- And other related blends in the same categories
We appreciate this versatility because real-world work often involves older legacy systems as well as newer installations. Being able to handle such a broad set of refrigerants means we can bring this one machine to almost every job.
Not Suitable for Flammable or Corrosive Refrigerants
We need to highlight a critical limitation: this machine is not designed for explosive, flammable, or corrosive refrigerants. That means we should never attempt to recover refrigerants that fall into those categories.
We should always check the refrigerant type specified on the equipment nameplate and in the documentation before connecting the recovery unit. If we encounter flammable blends or special-use refrigerants, we must use recovery machines rated for those specific gases.
Typical Use Cases and Applications
This refrigerant recovery machine is intended to be a highly versatile tool. Whether we are working on home air conditioning, commercial refrigeration, or automotive A/C systems, it fits naturally into the workflow.
We find that its design and feature set match a wide range of day-to-day service tasks.
Automotive Air Conditioning Service
For automotive technicians, recovering refrigerant from car A/C systems is a routine need. This machine can handle common automotive refrigerants, including R134a and many other blends.
We can connect it with suitable hoses and recovery cylinders to pull refrigerant from vehicles before major repairs or component replacements. Its compact size means it fits easily in a shop bay or mobile work van.
Household Air Conditioners and Heat Pumps
In residential work, we often need to recover refrigerant before replacing condensers, evaporator coils, or line sets. This unit’s compatibility with refrigerants like R22, R410A, and R407C makes it a solid partner for these jobs.
We like that we can bring it into tight mechanical closets, attic spaces, or small back yards without much trouble. The ergonomic handle helps when we have to climb steps or maneuver around obstacles.
Commercial and Light Industrial Systems
Commercial freezers, rooftop HVAC units, and light industrial refrigeration often use refrigerants from the supported list. We can employ this machine to recover refrigerant from these systems during maintenance, retrofits, or decommissioning.
We appreciate that the machine’s strong recovery performance and cooling system are suitable for more demanding sessions, while still staying portable enough to move between locations.
Ease of Use and User Experience
We always care about how intuitive a tool feels. Powerful hardware is important, but if it is confusing or awkward to use, we lose time and make mistakes. This refrigerant recovery machine was clearly designed with usability in mind.
From the gauges to the purge switch and overall layout, the operation is straightforward once we understand the basic process.
Simple Controls and Clear Feedback
The main controls are laid out in a way that is easy to understand. We have the intake and discharge ports, the two pressure gauges, and switches for power and purging.
We can watch the intake (blue) and discharge (red) gauges as we work, which helps us know how the recovery is progressing. By keeping an eye on these gauges, we prevent surprises, make adjustments to flow, and verify that the machine is operating smoothly.
Easy Setup and Connection

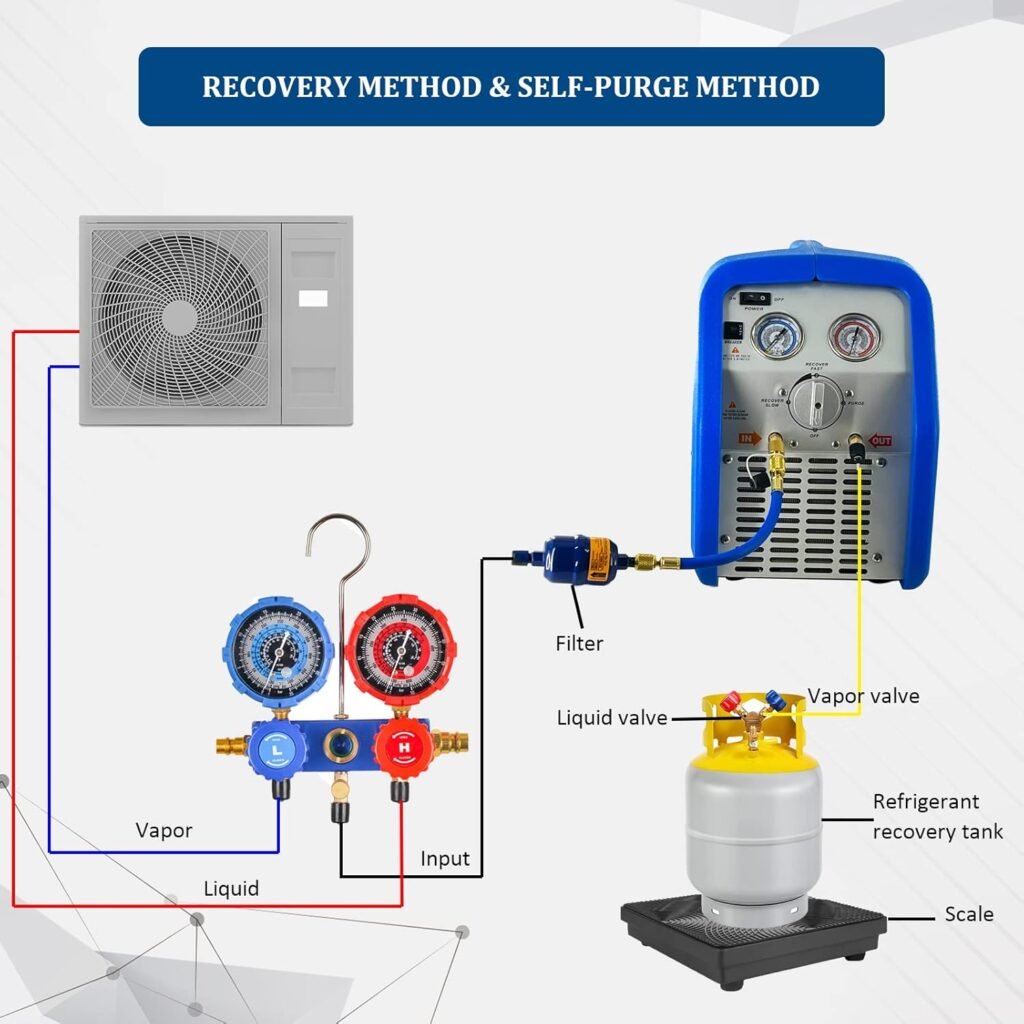

To use the machine, we connect it between the system we are servicing and the recovery cylinder, using the appropriate hoses and manifolds. Because it adheres to common connection standards, we do not need unusual adapters in most scenarios.
We find that setup becomes a routine habit: check connections, confirm the right refrigerant cylinder, verify valves, and power on. Once we establish this pattern, the machine becomes a natural part of our workflow.
Maintenance and Longevity
Any tool we rely on regularly needs a clear maintenance routine. While this machine is lower-maintenance than oil-lubricated units, it still benefits from some simple care to keep it reliable and long-lived.
We like that the maintenance steps are not complicated or time-consuming, which keeps downtime low.
Filter Replacement
The filter dryer is one of the primary consumables. Over time, it captures moisture and liquid contaminants, and its performance will degrade if we do not replace it.
We should follow a regular replacement schedule based on how frequently we use the machine and the condition of the systems we service. Swapping the filter dryer keeps internal passages cleaner, protects the compressor, and maintains strong performance.
General Inspection and Cleaning
From time to time, we should inspect hoses, fittings, and the machine housing for signs of wear or damage. Dust and debris should be wiped off the vents and condenser area so airflow remains unobstructed.
We find that a quick inspection after busy weeks or big projects prevents small issues from turning into serious breakdowns. Checking cables, switches, and the handle also ensures the unit stays comfortable and safe to carry.
Pros and Cons
To help us decide if this refrigerant recovery machine fits our needs, we find it useful to weigh the strengths and limitations clearly.
We can think of this as an honest snapshot of where this product shines and where it may not be ideal.
Advantages We Appreciate
- Strong 3/4 HP motor: Provides fast recovery for both liquid and vapor refrigerants.
- Oil-free compressor: Reduces maintenance, avoids oil contamination, and simplifies operation.
- Robust safety features: Automatic high-pressure shutoff at 558 psi and overload protection.
- Clear pressure gauges: Easy-to-read intake (blue) and discharge (red) gauges for better control.
- Self-bleed/purge function: Makes it easier to remove residual refrigerant and avoid cross-contamination.
- Replaceable filter dryer: Helps remove moisture and liquids, improving longevity and reliability.
- Compact and portable: Ergonomic handle and manageable size for field service and workshop use.
- Wide refrigerant compatibility: Works with many Category III, IV, and V refrigerants across automotive, residential, and commercial applications.
- Large condenser and fan: Enhanced cooling design supports faster cycles and longer duty periods.
Limitations to Keep in Mind
- Not for flammable or corrosive refrigerants: We must confirm refrigerant type before use; it is not rated for explosive or corrosive substances.
- Single-cylinder design: While powerful, it may not match the absolute fastest multi-cylinder industrial units in large-scale jobs.
- Reliance on proper purging and filter care: To maintain performance, we need to remember to purge and replace filters as part of our routine.
Who Is This Machine Best For?
Different users have different expectations, so it is helpful to identify who will get the most value from this refrigerant recovery unit.
We can consider both professional and serious hobbyist situations when judging fit.
Professional HVAC and Refrigeration Technicians
For HVAC technicians, refrigeration specialists, and A/C service pros, this machine aligns well with daily job demands. It offers recovery speed, portability, and reliability in a package that is easy to transport and maintain.
We find it particularly suitable if we frequently work with a variety of refrigerants and need a single, go-to machine that can handle them all, as long as they are non-flammable and non-corrosive.
Automotive A/C Specialists and Shops
Automotive A/C shops that handle many vehicles with R134a and other compatible refrigerants will appreciate having a portable, oil-free recovery unit. It integrates well into existing equipment setups and does not require specialized power.
We see it as a great choice for small to medium shops that want a reliable machine without the complexity or high cost of some large integrated stations.
Advanced DIY and Enthusiast Users
For advanced DIY users who work on their own household A/C systems, automotive A/C, or light commercial equipment, this machine can be an excellent investment. It offers professional-grade capability without an overwhelming learning curve.
We would recommend that DIY users make sure they understand local regulations around refrigerant handling and recovery before purchasing, because the machine itself is only one part of responsible refrigerant management.
Practical Tips for Getting the Most Out of This Machine
To help us maximize the value from this recovery unit, we can incorporate some simple best practices into our routine. These practices support safety, performance, and long-term reliability.
We see these as habits that quickly become second nature once we start using the machine regularly.
Always Confirm the Refrigerant Type
Before hooking up the machine, we should check:
- The system label or nameplate
- Any service records, if available
- Manufacturer documentation
This confirms that the refrigerant is compatible and not flammable or corrosive. Identifying the refrigerant is a key step in safe and compliant recovery.
Use Proper Hoses and Cylinders
We should always use hoses and recovery cylinders that are rated for the pressure and type of refrigerant we are dealing with. Using worn or incorrect hoses can put us at risk and undermine the machine’s safety features.
We also want to ensure the recovery cylinder is empty or at a safe fill level, and that it is approved for the specific refrigerant according to applicable standards.
Monitor Gauges During Operation
The intake and discharge gauges are not just decorative; they are active tools for monitoring the health and status of our recovery process. Watching them helps us:
- Spot unusual backpressure or restrictions
- Recognize when recovery is nearing completion
- Confirm that the machine is operating within safe ranges
Using these visual signals, we can respond quickly if something looks off.
Purge After Each Job or Refrigerant Change
We should use the purge switch to clear out residual refrigerant after finishing a job or before changing to a different refrigerant type. This habit:
- Reduces cross-contamination
- Protects the internal compressor and components
- Keeps recovered refrigerant cleaner
We find that taking a few extra minutes for a proper purge pays off in the long run.
Environmental and Regulatory Considerations
Refrigerant recovery is not just a convenience; in many regions it is a legal requirement aimed at protecting the environment. This machine supports us in complying with those expectations.
We should think of it as part of a broader responsible handling approach rather than a standalone tool.
Minimizing Refrigerant Release
By efficiently recovering liquid and vapor refrigerant instead of venting it, we significantly reduce the release of greenhouse gases and ozone-depleting substances into the atmosphere.
We see this as a professional obligation as well as a regulatory one, especially when working around customers who expect environmentally responsible service.
Supporting Recycling and Proper Disposal
Once refrigerant is recovered, it can be:
- Reused in the same system if clean and appropriate
- Sent to a facility for recycling or reclamation
- Disposed of properly when it can no longer be used
This machine’s compatibility with many refrigerants and its oil-free design help make these options easier and cleaner. We can integrate it smoothly into any program that promotes proper refrigerant management.
Our Overall Impression
After considering its features, performance, and practical advantages, we see the 3/4 HP Single Cylinder Refrigerant Recovery Machine, 110V 60Hz Portable Oil-Free Freon Recycling Unit as a strong, well-rounded option for both professionals and serious DIY users.
We appreciate the combination of:
- Powerful 3/4 HP oil-free compressor
- Clear safety systems and shutoff features
- Purge and filter dryer functions
- Wide refrigerant compatibility
- Compact, portable design
This balance makes it a capable and convenient recovery solution for a broad range of tasks, from residential A/C to commercial refrigeration and automotive systems, as long as we avoid explosive, flammable, or corrosive refrigerants.
Final Thoughts: Is It Worth Adding to Our Toolkit?
If we are looking for a reliable, portable, and relatively low-maintenance refrigerant recovery machine that can handle liquid and vapor across many common refrigerants, this model is well worth serious consideration.
We believe it fits best for those of us who:
- Need a robust, everyday recovery unit
- Value safety features like automatic shutoff and overload protection
- Want the convenience of an oil-free compressor
- Regularly work with multiple refrigerant types in non-flammable, non-corrosive categories
By using it with proper hoses, recovery cylinders, and good working practices, we can turn this machine into a dependable partner on the job, helping us recover refrigerant efficiently, protect our equipment, and support responsible environmental practices.
