? Are we ready to put a heavy-duty air compressor to work in our shop or facility and want to know if the 2545E10-V 10hp 120 gal Two-Stage Compressor (200/3) is the right choice for our needs?

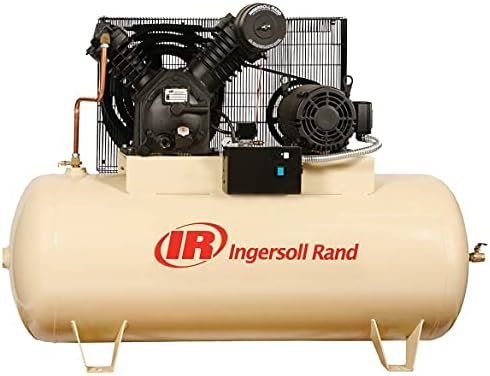

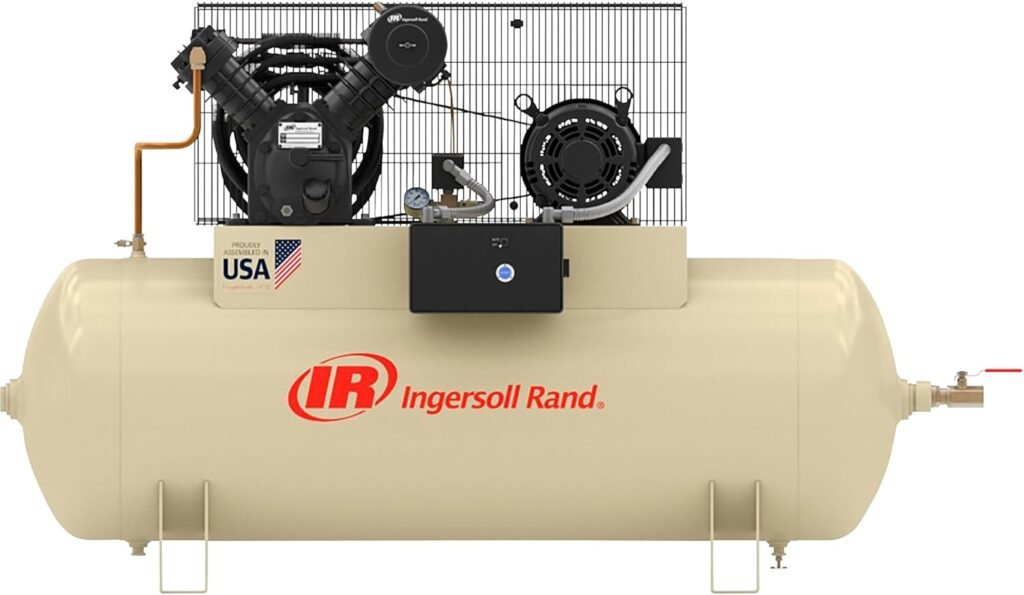

Product Overview: 2545E10-V 10hp 120 gal Two-Stage Compressor (200/3)
We find this model attractive for heavy-duty applications because it combines a two-stage pump with a large ASME receiver and continuous-duty capability. The unit is designed for demanding environments where uptime and long service life matter, and the combination of cast iron construction and synthetic lubrication supports that aim.
What the model name tells us
We like how the model designation is descriptive: 10hp indicates motor power, 120 gal denotes the receiver capacity, two-stage indicates pump design, and (200/3) signals three-phase electrical service. This gives us quick insight into the intended industrial-class performance and installation needs.
Key Features and Highlights
We appreciate concise feature lists when evaluating equipment, so we’ll summarize the main selling points and why they matter to us in the field. These highlights guide our expectations for reliability, maintenance intervals, and application fit.
- Long-Life cast iron construction for pump durability and extended pump life designed for over 15,000 hours of trouble-free use.
- 100% continuous duty rating with 7.5 or 10 hp two-stage pump options, 175 psig maximum operating pressure, and 80 or 120 gallon ASME receiver tank choices.
- Easy-to-service mechanical design with individually cast cylinders, an overhung crankshaft, and a one-piece connecting rod.
- All Season Select synthetic lubricant for improved efficiency and extended oil change intervals—2,000 hours between changes and four times longer life than petroleum-based oils.
- Two-year pump warranty available when purchasing the All-Season Select lubricant start-up kit, which includes start-up and first-year maintenance parts.
Technical Specifications
We like clear technical specs to compare units and to help with installation planning. Below is a table summarizing the core specifications we would use during selection and setup.
| Specification | Detail |
|---|---|
| Model | 2545E10-V 10hp 120 gal Two-Stage Compressor (200/3) |
| Motor Power | 10 hp (also available in 7.5 hp option) |
| Pump Type | Two-stage reciprocating pump |
| Maximum Operating Pressure | 175 psig |
| Receiver Capacity | 120 gallon ASME receiver (also available in 80 gal variant) |
| Construction | Durable cast iron pump and components |
| Duty Cycle | 100% continuous duty |
| Electrical | 200 V, 3-phase (200/3) |
| Lubrication | All Season Select synthetic lubricant (2,000 hours between changeouts) |
| Expected Pump Life | Designed for over 15,000 hours of use |
| Warranty | Two-year pump warranty available with All-Season Select starter kit |
Performance and Power
We consider performance in both pressure capability and effective flow for our tools and processes. The two-stage design and continuous-duty rating indicate that this compressor is built to maintain higher pressure reliably.
Pressure Capability
We like that the compressor supports a maximum operating pressure of 175 psig, which covers many high-pressure applications such as sandblasting, spray finishing, and certain industrial tools. The higher maximum pressure gives us flexibility when running demanding pneumatic equipment that benefits from extra reserve pressure.
Flow and Duty Cycle
The 100% continuous duty rating is important to us because it means the system is built to run for extended periods under load. While actual CFM output depends on pump configuration, condition, and operating pressure, the combination of a two-stage pump and a 10 hp motor indicates strong flow capacity suitable for medium to heavy workloads in shops and production lines.
Build Quality and Durability
We prioritize machines that are built to last and that minimize downtime. This model emphasizes longevity through materials and mechanical layout that help resist wear and reduce the need for premature overhauls.
Cast Iron Construction and Pump Life
The cast iron construction of the pump components contributes to thermal stability and wear resistance, and the manufacturer designs the pump for more than 15,000 hours of trouble-free use. We value that long-life design because it lowers lifecycle costs and minimizes interruptions caused by major pump repairs.

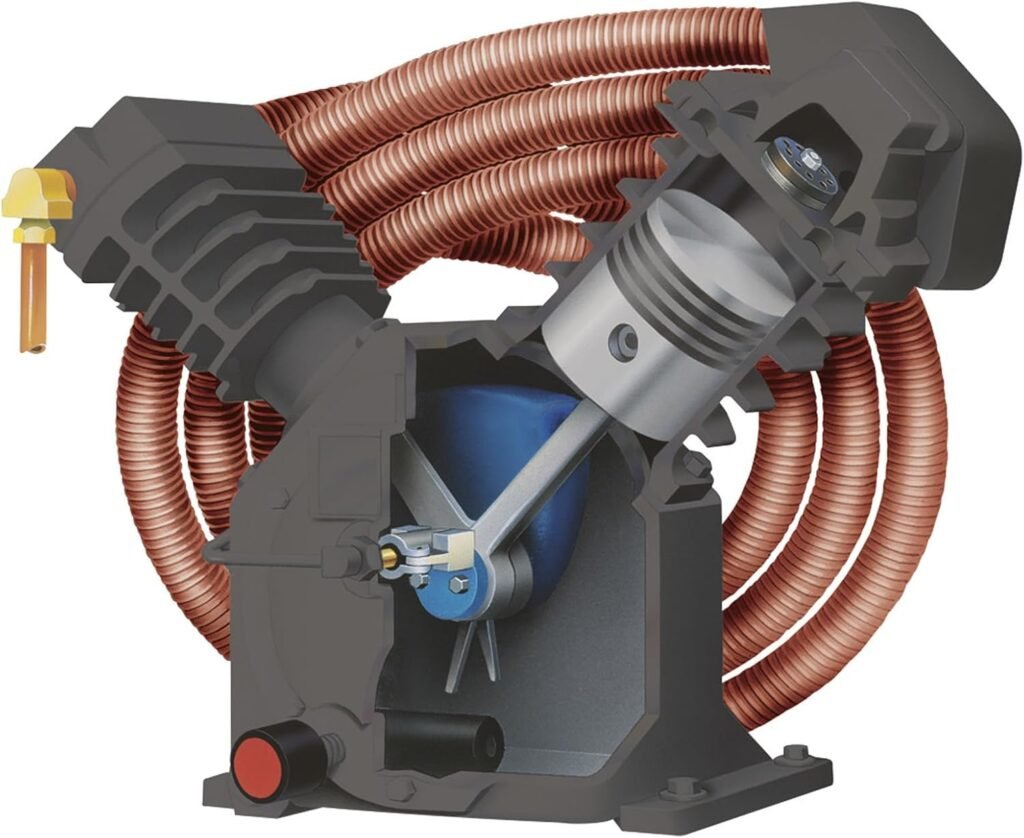

Mechanical Design for Reliability
Individually cast cylinders, an overhung crankshaft, and a one-piece connecting rod simplify the pump’s mechanical architecture. We like that these features reduce the number of complex assemblies, making mechanical failure modes fewer and easier to service when needed.
Lubrication and Maintenance Intervals
We pay close attention to lubrication strategies because they strongly affect component wear and performance. This model uses a synthetic lubricant approach that extends service intervals significantly.
All Season Select Synthetic Lubricant
The compressor ships with or is compatible with All Season Select synthetic lubricant, which offers a 2,000-hour change interval and is stated to last four times longer than conventional petroleum-based oils. We see this as a direct reducer of both maintenance labor and the frequency of oil disposal or purchases.
Practical Impact on Maintenance
Longer oil life translates to fewer downtime events for lubricant changes and lower operating costs over time. For shops running daily shifts, the 2,000-hour interval equates to a long time between service activities, allowing us to schedule preventative maintenance more efficiently and concentrate on production.
Serviceability and Ease of Maintenance
We prefer equipment that’s straightforward to service so that routine tasks don’t become large operational drains. This unit’s design choices make routine maintenance tasks faster and simpler for technicians.
Accessible Components and Design Choices
The individually cast cylinders and simplified connecting rod design make disassembly and part replacement less time-consuming. We can access wear items more easily, which reduces labor time and the potential for mistakes during service.
Start-Up Kit and First-Year Support
Purchasing the All Season Select lubricant start-up kit provides not only the synthetic oil but also the parts required for start-up and the first year of maintenance. We appreciate the convenience and confidence this kit provides, and the kit also unlocks an extended two-year pump warranty, which helps protect our investment.
Maintenance Schedule and Checklist
We like having a clear maintenance schedule to keep the compressor running reliably. Below is a sample schedule we would follow and recommend adapting to actual operating hours and conditions.
| Interval | Task |
|---|---|
| Daily | Inspect for leaks, check gauges, drain tank condensate, verify normal operation. |
| Weekly | Inspect belt tension (if belt-driven), clean intake filters and cooling fins, check oil level. |
| Every 500 hours | Inspect safety relief valves, check for abnormal vibration or noise, inspect piping connections. |
| Every 2,000 hours | Change All Season Select synthetic lubricant, replace oil filter, inspect internal pump components if indicated. |
| Annually | Full system inspection, ASME tank inspection per local regulations, replace air filters, verify motor wiring and overload protection. |
We use this schedule as a baseline, and we adjust based on environmental factors like dust, humidity, and daily run hours.
Installation and Setup Considerations
We like to plan installations carefully because a poorly-installed compressor can cause performance problems and safety risks. This model’s electrical and physical requirements are a central part of that planning.
Electrical Requirements
The (200/3) designation requires three-phase power at approximately 200 volts. We recommend that a licensed electrician verify supply compatibility and size appropriate protection devices, motor starters, and wiring. We also note that start-up current will be higher than running current, so proper sizing of overcurrent protection and starters is essential.
Placement, Ventilation, and Mounting
We recommend placing the compressor in a well-ventilated area with space around the unit for service access. Because cast iron pumps and two-stage compressors run hot, sufficient airflow and clearance are important to maintaining cooling efficiency. A solid, level foundation reduces vibration and noise transmission; we prefer mounting on vibration isolators if the unit sits on concrete in an occupied space.
Safety and Compliance
We consider safety first when working with pressurized systems. This compressor includes features and documentation to support safe operation, but we still need to follow best practices while installing and using it.
ASME Receiver and Pressure Ratings
The receiver is an ASME-approved tank, which means it meets code requirements for a pressure vessel and typically requires periodic inspection per local regulations. The 175 psig maximum operating pressure means we must verify downstream equipment and piping are rated for that pressure or provide appropriate regulators.
Recommended Safety Practices
We insist on inspecting safety relief valves, pressure gauges, and shutoffs before operation each day. Personnel should be trained on depressurizing, locking out electrical power, and following manufacturer procedures before service. We also recommend implementing a documented inspection and testing program in compliance with OSHA and local codes.
Applications and Use Cases
We find this compressor suitable for a wide range of industrial and commercial applications where high pressure, sustained flow, and reliable duty are required. Below we outline typical uses and scenarios where the unit performs well.
Industrial Manufacturing and Fabrication
In fabrication shops that run pneumatic presses, grinders, or sandblasters, the 175 psig capability and continuous duty rating provide dependable supply. We can run multiple tools in sequence or simultaneously in many setups, and the large receiver helps buffer demand peaks.
Painting, Coating, and Finish Work
Spray booths and paint operations often require stable pressure and clean supply. We’d pair the compressor with appropriate filtration and dryers to maintain air quality while using the higher pressure for certain spray applications.
Automotive and Heavy Equipment Shops
For busy automotive shops with air tools, lifts, and impact guns, the 10 hp motor and 120 gallon receiver give us the stamina needed to handle frequent tool usage without significant pressure drop, keeping throughput steady.
Small Production Lines and Continuous Processes
Any small production line that requires uninterrupted compressed air benefits from the 100% continuous duty rating and robust pump. The unit’s design is oriented towards minimizing interruptions for maintenance and maximizing operational hours.
Pros and Cons
We weigh benefits and drawbacks to help decide fit for purpose. The following list sums up our view after examining the design and features.
Pros
- Durable cast iron construction supports long pump life and reliability.
- 100% continuous duty and a two-stage pump for high-pressure applications.
- Large ASME receiver (120 gal) provides buffer capacity and reduces short cycling.
- Extended oil change intervals with All Season Select synthetic lubricant reduce maintenance frequency.
- Easy service design with individually cast cylinders and simplified crank/rod assembly.
- Optional two-year pump warranty with start-up kit increases ownership confidence.
Cons
- Requires three-phase 200 V electrical supply, which may necessitate service panel upgrades in some facilities.
- Higher initial purchase and installation costs compared to smaller single-stage compressors or home-shop units.
- Size and weight require dedicated space and proper foundation—unsuitable for cramped or temporary setups.
- To maximize performance (e.g., clean, dry air), additional filtration and dryer equipment may be required, increasing total system cost.
Comparison to Other Options
We like to contextualize a purchase by comparing it to similar models and alternatives. This helps us determine whether the 2545E10-V is the best match for our needs.
Two-Stage vs Single-Stage Compressors
Two-stage compressors compress air in two steps, allowing higher final pressures (like 175 psig) with improved efficiency under load. Single-stage units are simpler and cheaper but generally operate at lower maximum pressures and are less suited for continuous heavy-duty use. For high-pressure, continuous applications, we prefer the two-stage design.
10 hp vs 7.5 hp Options
The model family includes a 7.5 hp option that may be adequate for less demanding operations. We opt for the 10 hp when we anticipate frequent simultaneous tool use, higher peak flow demands, or when future expansion is likely. The 7.5 hp variant can offer energy savings in smaller shops where full 10 hp capacity is unnecessary.
Tank Size Choices: 80 gal vs 120 gal
We favor the 120 gallon receiver when tool cycles are frequent or when minimizing short-cycling is a priority. The 80 gallon version is a good compromise for tighter spaces or for shops where demand is moderate. Generally, larger tanks provide more stored energy and smoother pressure stability.
Energy Use and Operational Costs
We consider both the electrical consumption and maintenance-related expenses when estimating total operating costs. These factors impact our budget and operational planning over the compressor’s lifetime.
Electrical Consumption
A 10 hp motor nominally delivers roughly 7.5 kW of mechanical power; electrical input is higher due to motor inefficiency and depends on power factor and load. We recommend verifying the motor nameplate for exact electrical ratings. Start-up inrush will be greater than running current, so motor starter selection and electrical distribution must accommodate these characteristics.
Maintenance and Lubrication Costs
The All Season Select synthetic lubricant reduces oil change frequency to 2,000 hours, which lowers long-term lubricant costs and service labor relative to conventional oils. We still need to budget for regular filter changes, safety valve tests, and periodic pump inspections to preserve performance and longevity.
Troubleshooting Common Issues
We like having a go-to list for common problems and remedial actions. These help us quickly identify and remedy issues to keep production moving.
Low Pressure or Insufficient Flow
- Check intake filters and clean or replace if clogged.
- Verify tank drains and moisture traps are operating correctly.
- Inspect belts and coupling alignment (if belt-driven) for slippage.
- Ensure electrical supply voltage and motor starter settings are correct.
Excessive Noise or Vibration
- Check mounting and foundation for looseness or inadequate isolation.
- Inspect connecting rod, bearings, and crankshaft for wear (service as recommended).
- Verify that cooling and airflow around the pump are not obstructed.
Oil Contamination or Elevated Temperatures
- Confirm correct All Season Select lubricant is used and change at 2,000-hour intervals.
- Inspect for signs of coolant or water ingress, and ensure intercoolers and coolers are clean.
- Verify operating ambient temperature and improve ventilation if required.
Accessories and Add-Ons We Recommend
We consider accessories that complement the compressor to build a reliable compressed air system tailored to our needs. These items improve air quality, system efficiency, and safety.
- Aftercooler and moisture separators to reduce condensate and improve air quality.
- Refrigerated or desiccant dryers for paint booths, instrumentation, and sensitive applications.
- High-quality filtration elements for particulate, oil, and coalescing filtration.
- Automatic tank drain or timed drain valves to manage condensate without manual intervention.
- Pressure regulators and dedicated distribution zoning to match pressure and flow to specific tools or processes.
Installation Checklist
We prefer a checklist during installation to ensure nothing is overlooked. Below is a practical checklist that we follow when planning and installing the unit.
- Verify three-phase 200 V electrical availability and proper breaker/starter sizing.
- Prepare a level, vibration-resistant mounting location with adequate clearance for service.
- Confirm proper ventilation and cooling airflow for the pump and motor.
- Install drip pans and condensate management if indoors or near sensitive equipment.
- Connect compressed air distribution lines with appropriate pressure ratings and supports.
- Install air treatment (filters/dryers) as required for our applications.
- Perform initial startup per manufacturer instructions and record baseline operating data.
Warranty, Support, and Start-Up Kit
We value extended support options, and the manufacturer’s approach to warranty and start-up assistance can influence our purchasing decision.
Two-Year Warranty with Start-Up Kit
When we purchase the All Season Select lubricant start-up kit, we receive the parts necessary for start-up and the first year of maintenance, plus an extended two-year pump warranty. This package reduces initial maintenance hassle and gives extra assurance on the pump’s reliability.
What the Start-Up Kit Provides
The kit typically includes the recommended synthetic lubricant, initial filter(s), and essential start-up parts needed for first-year maintenance. We appreciate the convenience of a single purchase that prepares us for proper commissioning and early maintenance tasks.
Real-World Considerations and Practical Tips
We like to apply real-world practicality to machine selection. The following tips reflect lessons we’ve learned while operating compressors in production environments.
- Schedule maintenance during predictable downtime windows to minimize production impact.
- Keep spare filters, belts (if applicable), and basic service parts on hand to reduce downtime.
- Verify the compressed air quality required by your processes before relying only on the compressor; add dryers and filtration as needed.
- Record operating hours and pressure/temperature logs to spot trends before they become failures.
- Train multiple technicians on safe service procedures, but always emphasize lockout/tagout and pressure isolation before maintenance.
Who Should Buy the 2545E10-V
We recommend this compressor for organizations that need robust, continuous compressed air at elevated pressures and want a unit engineered for longevity.
- Medium to large shops that run multiple pneumatic tools or continuous processes.
- Industrial facilities requiring repeated high-pressure operations such as sandblasting or industrial coating.
- Automotive and heavy equipment shops with high tool demand who want to reduce cycling and maintain steady pressure.
- Production environments where reduced maintenance frequency and long pump life translate to lower total cost of ownership.
Who Might Consider Other Options
We also recognize that this unit is not ideal for every scenario, and we suggest alternatives in these cases.
- Small home garages or hobbyists who need intermittent, low-pressure air should consider smaller, single-stage units that are less expensive and easier to install.
- Operations limited by single-phase power or low available electrical service may prefer units designed for single-phase supply.
- Facilities with strict low-noise requirements should evaluate the placement and sound mitigation options, as industrial two-stage compressors can be louder than smaller units.
Final Recommendation
After reviewing the features, performance characteristics, maintenance considerations, and application fit, we conclude that the 2545E10-V 10hp 120 gal Two-Stage Compressor (200/3) is a strong choice where robust, continuous, high-pressure compressed air is needed. We particularly value the cast iron construction, two-stage design, long lubricant intervals with All Season Select, and the option for an extended two-year pump warranty via the start-up kit. For shops and facilities that can provide the required three-phase power and space, this model offers reliability and lower maintenance frequency that justify the investment.
We suggest contacting the manufacturer or an authorized distributor to verify CFM performance at the specific pressure points relevant to our tools, to confirm exact electrical specifications for our facility, and to arrange professional installation. With proper setup and routine care, this compressor can be a core component of a reliable compressed air system that supports our operations for years.
